K32-Max Pocket Beagle Controller Cap by Kulp Lights

Product Overview

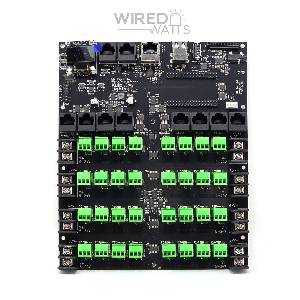

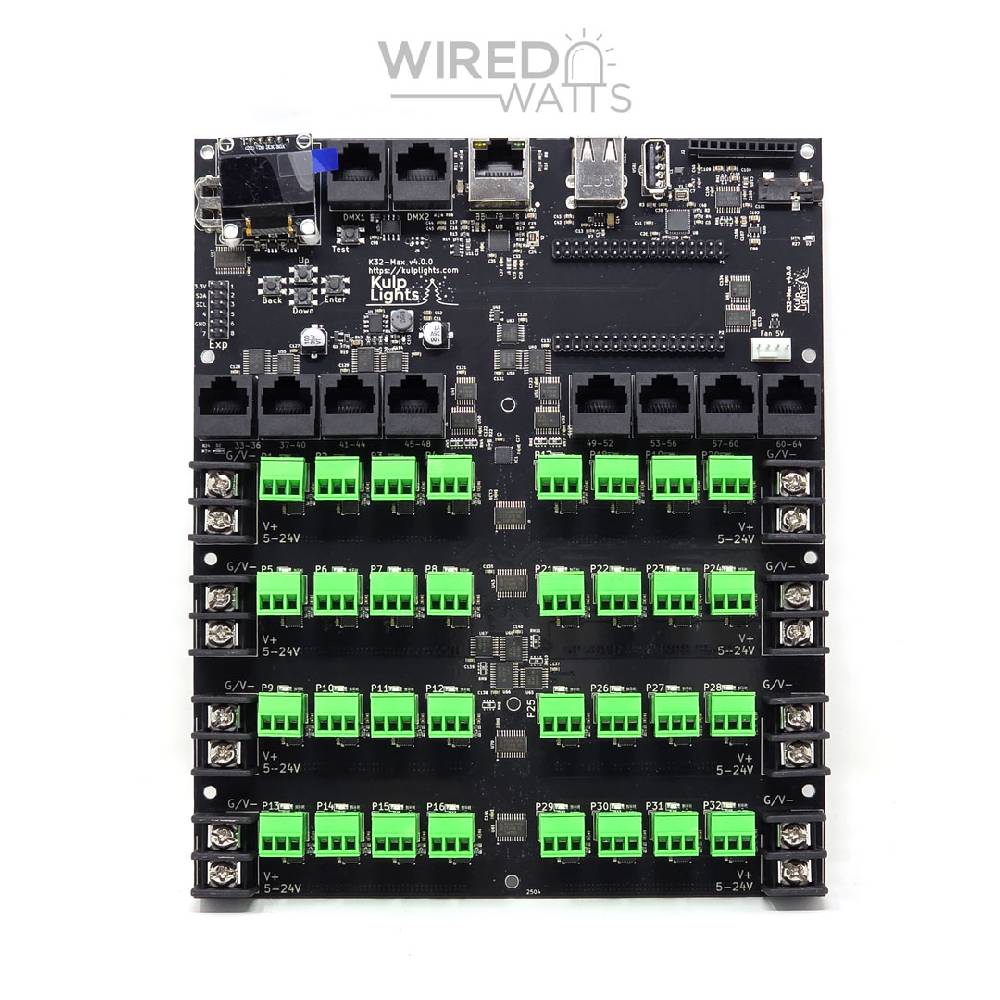

The K32-Max by Kulp Lights is the flagship version of the K32v2 family. This second revision is a cape for the PocketBeagle v2 and is designed to drive WS281x LED pixels. It has 32 × local ports that can each drive up to 800 pixels at 40 fps or up to 1,200 pixels at 20 fps. Utilizing the eight RJ45 differential ports, you can output an additional 32 - 192* strings via differential receivers. There are an additional two RJ45 RS485 outputs for DMX, PixelNet, Renard, or LOR.

As with any of the controllers in the K32v2 family, the K32-Max has a Real Time Clock (RTC) to maintain time, a temperature sensor, input voltage sensors, an OLED display with navigation push buttons, and a Gigabit Ethernet port (wired via USB2 so roughly 300Mb/s speed). Special to the K32-Max and K32-Pro, there are three powered USB ports, onboard sound, and a socket for an optional FM transmitter (sold separately).

Product Specifications

• 32 × pixel connectors in banks for four.
  • Each bank of four can use any voltage from 5v - 24v
  • Each string is protected by an eFuse that provides current monitoring, eFuse protection, and instant alerts
  • Each string can provide up to 6 amps of power
• 8 × RJ45 connections for 32 - 192* more strings via differential receivers
• 2 × RJ45 connections for DMX, PixelNet, Renard, or LOR
• On-board DAC and headphone jack for sound
• Header to attach optional FM transmitter (sold separately)
• 3 × USB-A connector for WiFi adapters or other USB devices
• Gigabit Ethernet Connector
• Temperature sensor
• Real Time Clock
• 5v four pin PWM cooling fan connector
• 12 pin expansion header exposes:
  • 8 × GPIO pins to add additional buttons, proximity sensors, etc to invoke various effects and functionality
  • I2C bus
  • 3.3v power and ground

Each controller in the K32v2 family requires a PocketBeagle v2. The K32v2 family will not work with a first generation PocketBeagle

*Anything past the first 32 ports requires a smart receiver capable of daisy chaining.
