K32-MAX Pocket Beagle Controller Cap by Kulp Lights

Product Overview

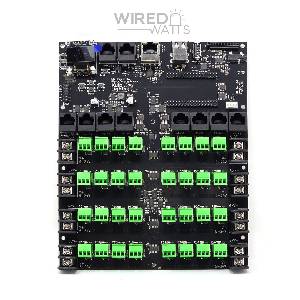

The K32-Max is a cape for the PocketBeagle 2 that is designed to drive ws281x LED pixels. It has 32 local ports that can each drive 800 pixels (with power injection) at 40FPS. It also has 8 RJ45 differential ports that can output an additional 32 strings via differential receivers. Finally, it has 2 RS485 outputs for DMX, PixelNet, Renard, LOR.

The K32-Max has a Real Time Clock (RTC) to maintain time, a temperature sensor, input voltage sensors, an OLED display with navigation push buttons, three powered USB ports, onboard sound, socket for FM transmitter, and a Gigabit Ethernet port (wired via USB2 so roughly 300Mb/s speed).

Product Specifications:

• 32 pixel connectors in banks for four.
  • Each bank of four can use any voltage from 5V - 24V
  • Each string is protected by an eFuse that provides current monitoring, eFuse protection, and instant alerts
  • Each string can provide up to 6A of power
• 8 RJ45 connections for 32 - 192 (via chaining) more strings via differential receivers
• 2 RJ45 connections for DMX/LOR
• On-board pcm5102 DAC and headphone jack for sound
• Header to attach FM transmitter
• 3 USB-A connector for WIFIi adapters or other USB devices
• Gigabit Ethernet Connector
• Expansion header pins providing 8 GPIO outputs and access to I2C bus, 3.3v power, and ground
• Temperature sensor.
• Real Time Clock
• 5v 4-Pin PWM Cooling Fan Connector
• 8 GPIO pins exposed to the user to allow adding additional buttons, proximity sensors, etc... to invoke various effects and functionality.

If you are interested in a full build, please take a look at the mounting plate option. It allows a full build-out of the controller being powered by up to four power supplies to allow for maximum output.

For a full build-out kit for the K32-MAX, look at the following page: uwi.red/back/
