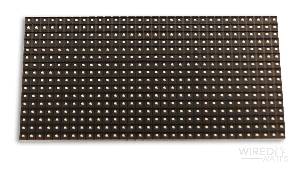

Full Color 32x16 P10 Panel Indoor Rated

$15.00

Full Color 32x16 P10 Panel Indoor Rated

This option does not exist.

Availability: In stock - more than 200 available!
Model: pnp10i
Brand: Wired Watts
Condition: New
Operating Weight: 0.625 lbs
Shipping Weight: 0.635 lbs
Shipping Dimensions: 14" × 8" × 1.4"
Categories: Panels


Share:

Product Overview

P10 panels are like mini televisions in that they have many RGB LED lights in a grid. They come in many shapes, styles, and layouts. The panels on this page have a resolution of 32x16. The number 10 in P10 stands for 10mm of spacing between each light. Thus, these panels are 320mm wide by 160mm tall. By utilizing more than one P10 panel, you can daisy chain them together to make much larger panels that behave as one. Each purchased P10 panel comes with a short ribbon cable to daisy chain to a second panel, and a power cord for every two panels (pictured in the gallery above). If you purchase one or two panels, you receive one power cord that will power two. If you purchase three or four panels, you will receive two power cords that will power up to four panels... and so on.

For help building out a panel, please take a look our Matrix Buildout Configurator and Calculator. It will create a plug and play solution for building a panel to your specifications.

Product Specifications

  • Voltage: 5V DC
  • Color: RGB
  • Pixels Width: 32
  • Pixels Height: 16
  • Pixel Type: SMD 3528
  • Total Pixels: 512
  • Number of Channels: 1,536
  • Width: 320mm / ~12.6"
  • Height: 160mm / ~6.3"
  • Vertical Hole Spacing: 89mm
  • Scan Rate: 1/8
  • Universe Count: 3 universes
  • Mounting Screw Size: 3mm
  • Power Consumption: 1.47 amps or 7.3 watts per panel at 100% brightness full white (tested on BBB with Octoscrolla)
  • Weather Rating: Indoor (these are not weatherproof and will not be warrantied if used outdoors)
  • Use Panel Strips or the X and T system to build out a matrix in an enclosure

Video

Below is a great video that explains what a panel is and some of the different ways in which you can run Panels. The second half of the video focuses directly on Colorlight Cards and their configuration. NOTE: The configuration steps in this video are outdated. Both FPP and LEDVision have been through multiple versions since this video. A direct link to the video can be found here: http://videos.xlights.org/xessentials-e26-p5-p10-panels-and-the-colorlight-board_f8084fcc8.html
