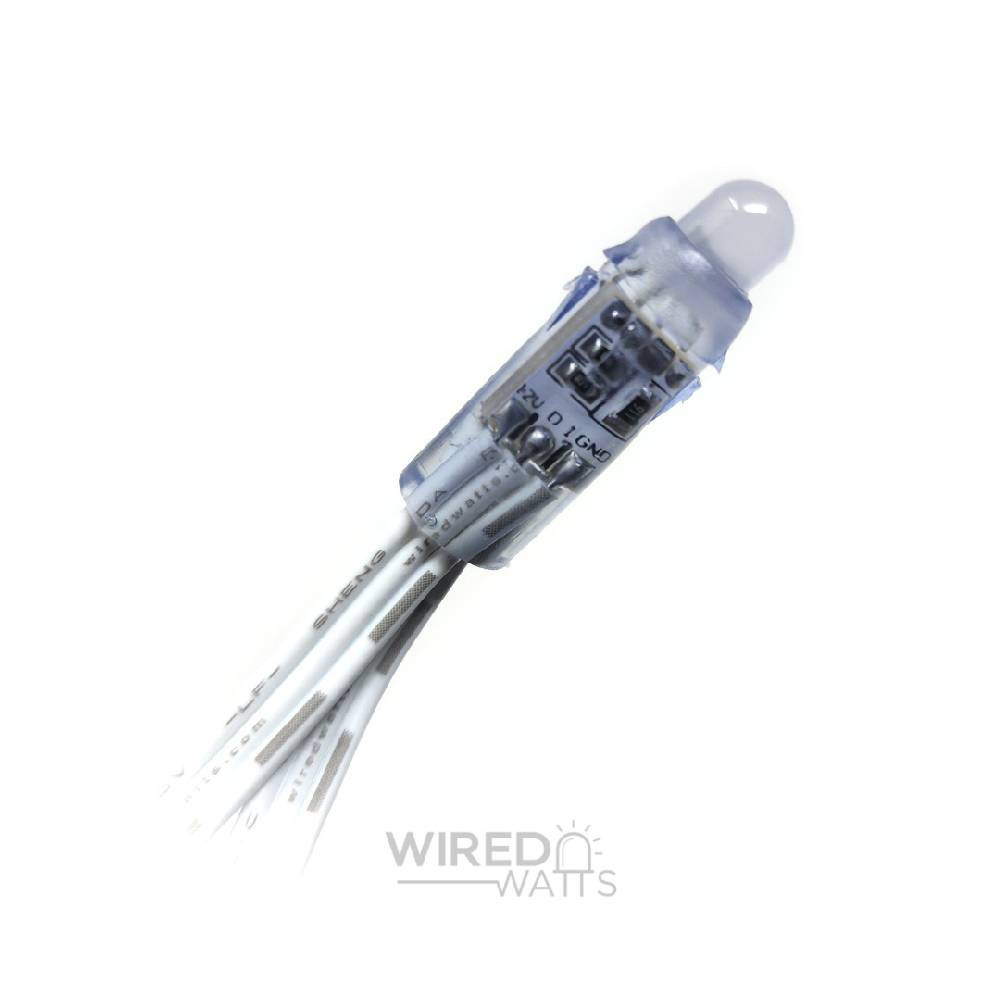

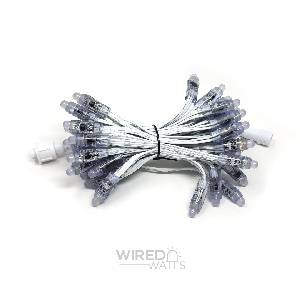

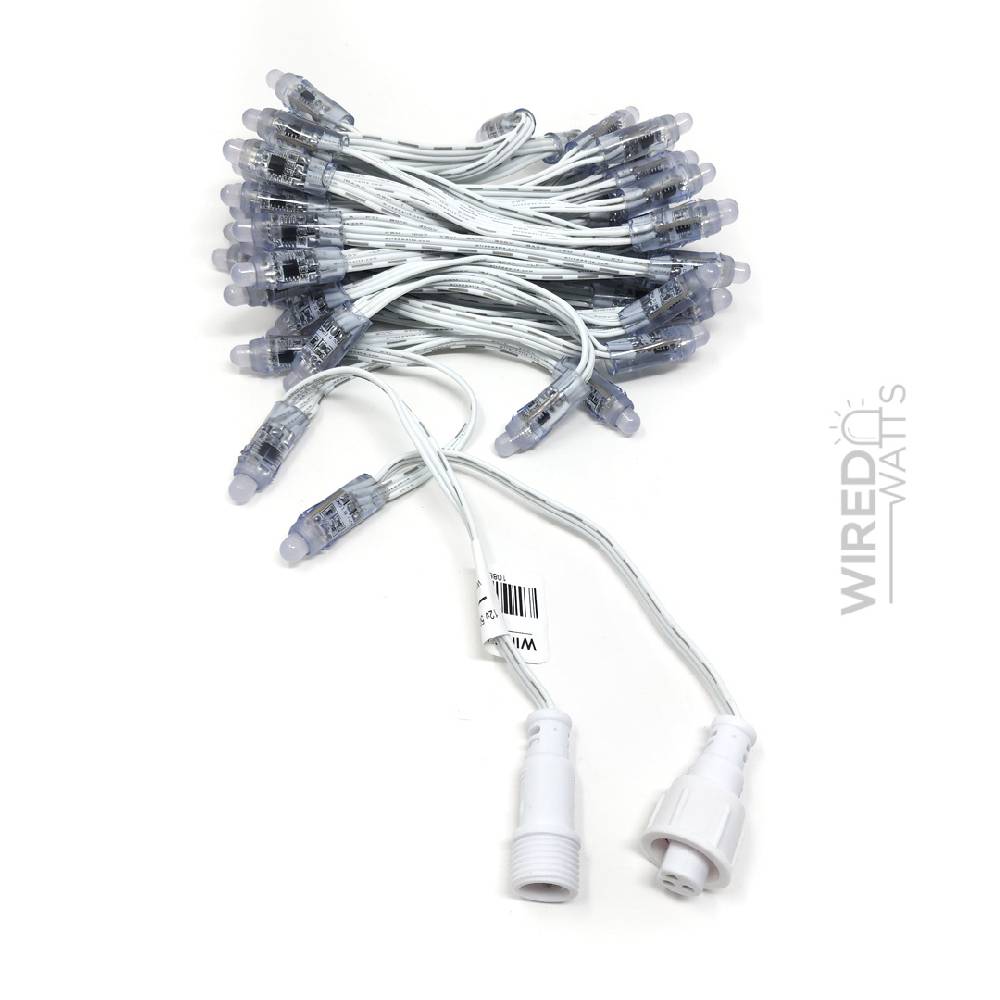

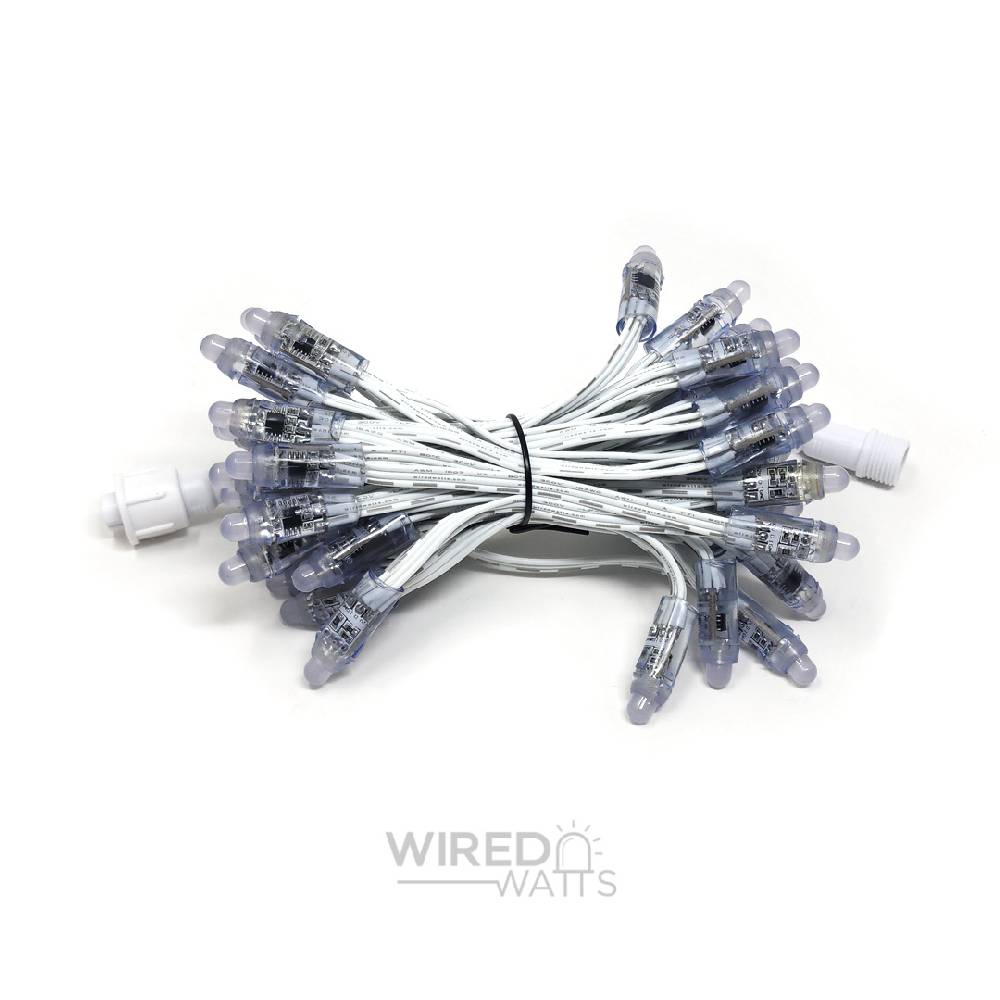

Smart 12v 50ct Bullet Node Pixels White Wire xConnect

Product Overview

White Out Pixels are great for making the wires disappear when punching your favorite coro props. Our White Out Pixels have both white wire and a white PCB to blend in well with the props you love to showcase.

Product Specifications

• Node Voltage: 12V DC
  • Resistor
• Node Color: RGB
• Node Protocol: WS2811
• Node Spacing: 10cm / ~4"
• Lead Length: 150mm / ~6"
• Node Type: Smart Bullet
• Nodes Per. String: 50

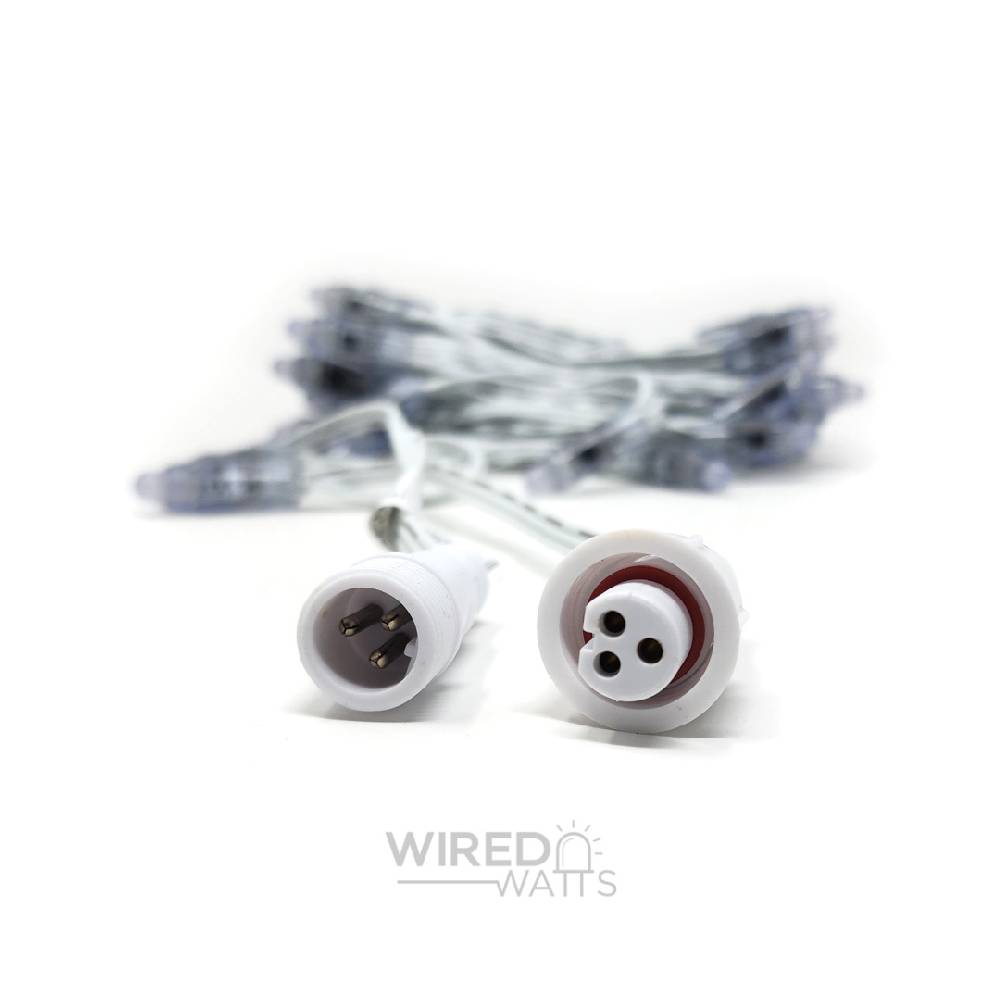

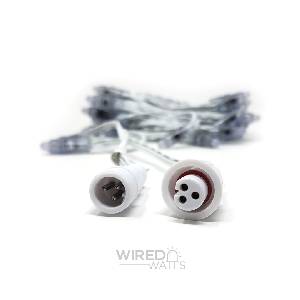

• Compatible Pigtail: xConnect
• Based On 100% White
  • Max Node Current Draw: 60mA
  • Max Node Wattage: 0.72W
  • Max String Current Draw: 3A
  • Max String Wattage: 36W
  • Max Nodes Before Power Injection: 120
• DMX Channels:
  • Per Node: 3
  • Per String: 150
• Required Controller: Smart Pixel
• Viewing Angle: 150 - 180°
• Weather Protection: IP65
• Width: 12mm
• Wire Color: White
• Wire Gauge: Stamped 18AWG, Closer to 20AWG
