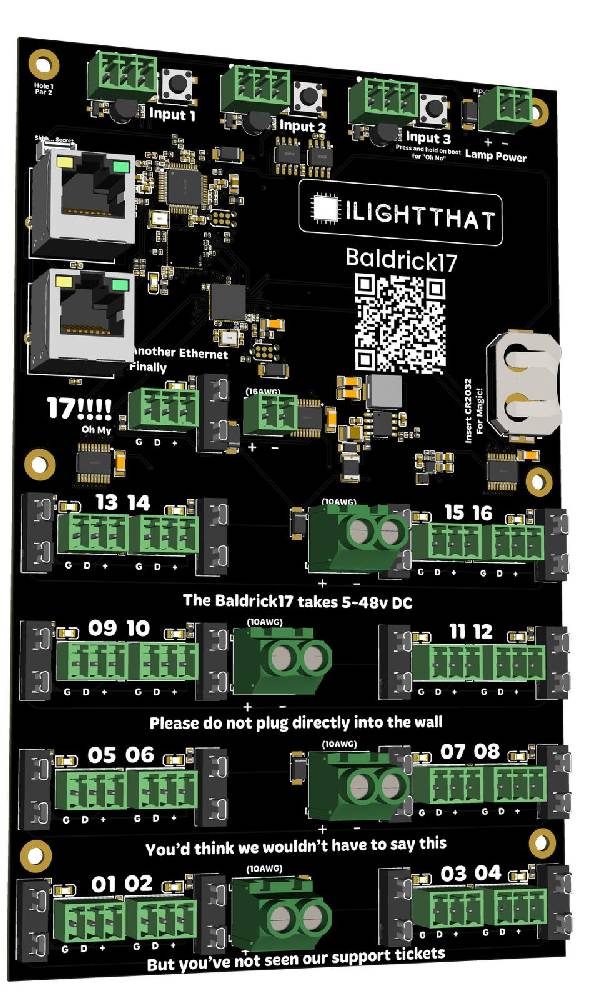

Baldrick 17 Port Controller Wired Watts Edition

Product Overview

• 5 ports accepting 5v - 47v with onboard power management and able to accept individual voltages
  • Power ports are banked (4 + 4 + 4 + 4 + 1)
• 17 Ports handling up to 750 pixels per port at 40fps
• 17 fused connectors which combined with the included 7.5 amp fuses allows for full pixel runs at 100%
• DDP, Artnet, E1.31 & sACN compatible
• 3 Programmable Turniputs ports (Can use the FPP API to start / stop a sequence and full lamp control)
• No separate FPP or FPP license required
• Fuse indicator lights for easy troubleshooting
• Dual Wired 10/100 ethernet
• Built in test modes
• Direct xLights integration for controller config push (2024.10 and later)

Visit https://www.baldrickboard.com/docs/baldrick17/introduction/ for more information.
