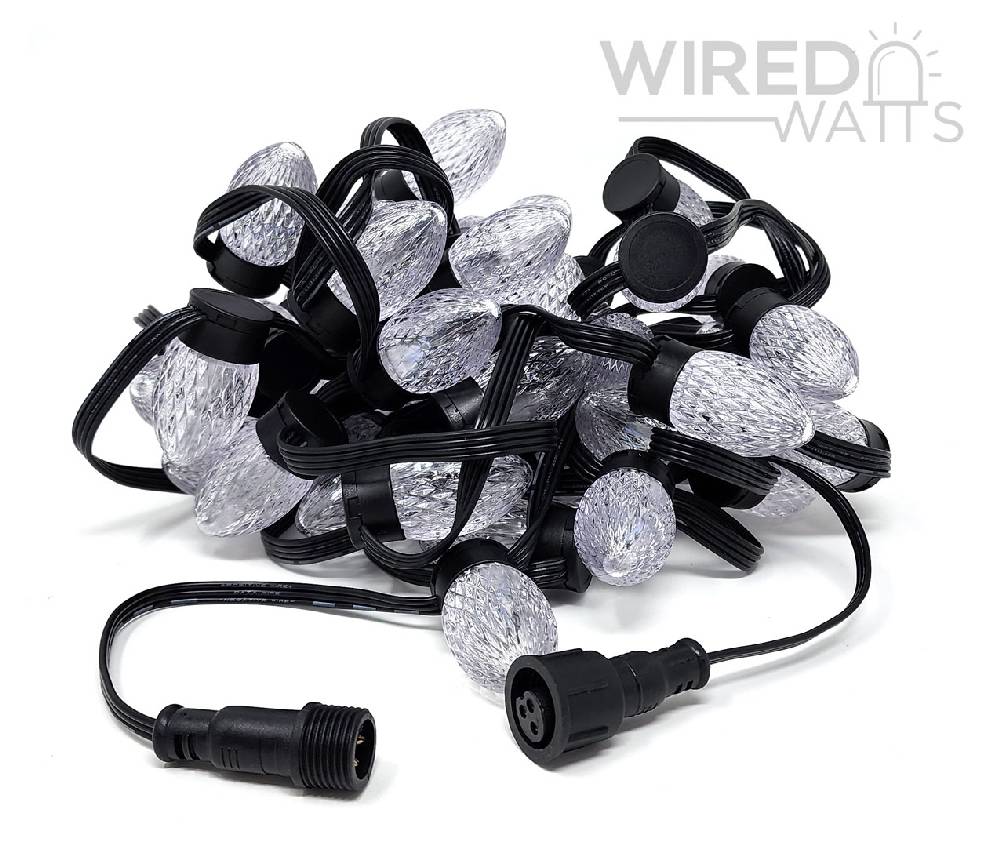

Pixabulb 12v 50ct 6 Inch Spacing with xConnect Connector

Product Overview

Pixabulbs have the traditional strawberry C9 style lens and provide a great way to create outlines.

There are some gutter clips / pvc / emt style clips available from Inspire Light Shows.

Product Specifications

• Node Voltage: 12V DC
• Node Color: RGB
• Node Protocol: WS2818
• Node Spacing: 15cm / ~6"
• Lead Length: 15cm / ~6"
• Node Type: Dual 50/50 LED
• Nodes Per. String: 50
• Compatible Pigtail: xConnect
• Power Consumption Based On 100% White:
  • Max Node Current Draw: TBD
  • Max Node Wattage: TBD
  • Max String Current Draw: TBD
  • Max String Wattage: TBD
  • Max Nodes Before Power Injection: TBD
• DMX Channels:
  • Per Node: 3
  • Per String: 150
• Required Controller: Smart Pixel
• Weather Protection: IP65
• Wire Color: Black
• Wire Gauge: Stamped 18AWG, Closer to 20AWG
