Panel connectors are used to join either indoor P10
or indoor P5
panels together at the vertical joint between each column. The center strip is used to join the panels on all inner joints, and a set of side strips to join the outside edges. These panel mounts are not compatible with outdoor style panels.
To calculate the number of strips needed, subtract one from the amount of columns in your matrix, and add a set of side strips.Example:
let's say you have a matrix that is 5 panels wide and 6 panels tall. You would 4 center strips that are 6 tall, and one set of side strips that are 6 tall.
For help building out a panel, please take a look our Matrix Buildout Configurator and Calculator
. It will create a plug and play solution for building a panel to your specifications.

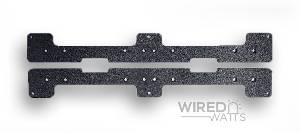

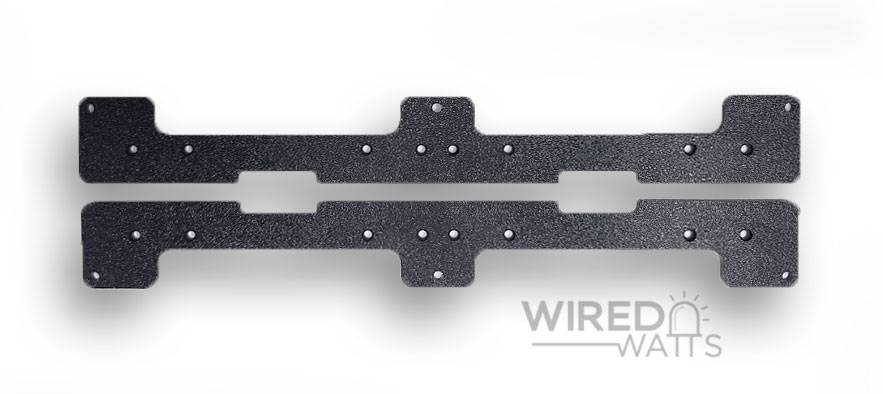

- Used for panel matrixes that are 6 panels tall
- Compatible with the center mounting strip that is 6 panels tall
- Compatible with P5 panels with a 144mm hole distance
- Compatible with P10 panels with an 89mm hole distance
