NBF-32026 Mounting Plate for Kulp K32-B

Description

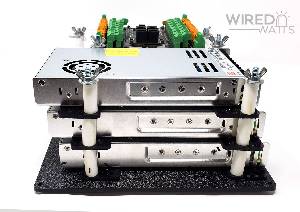

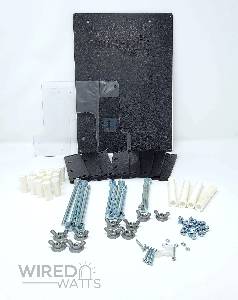

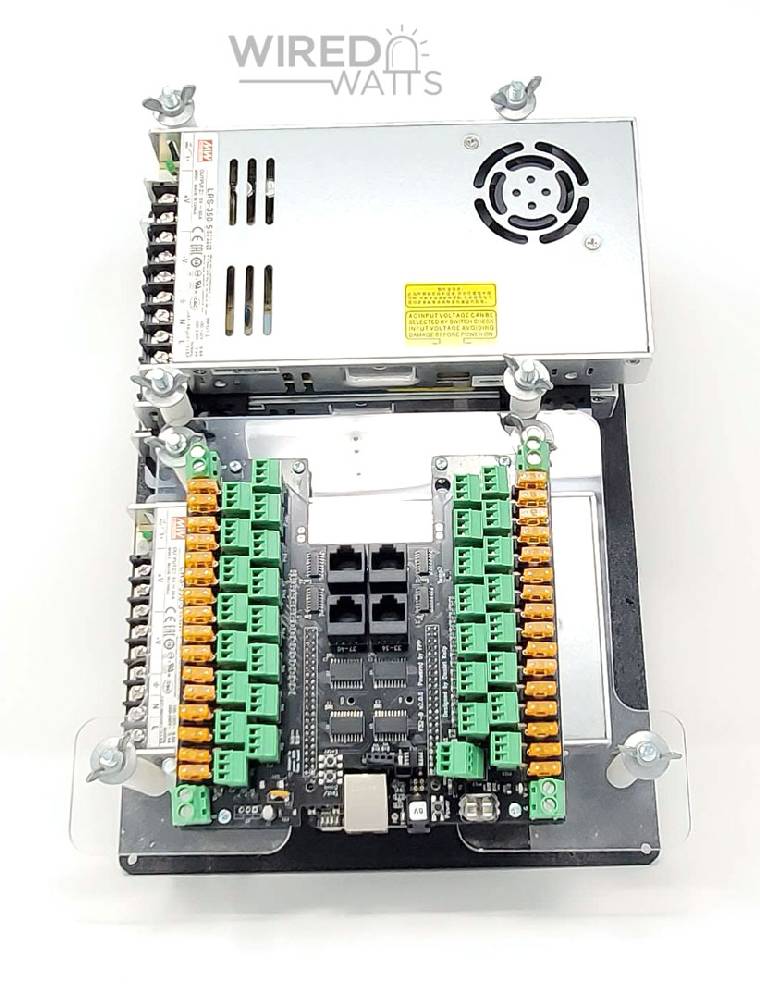

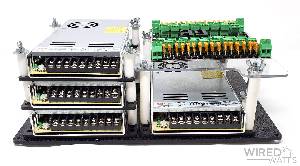

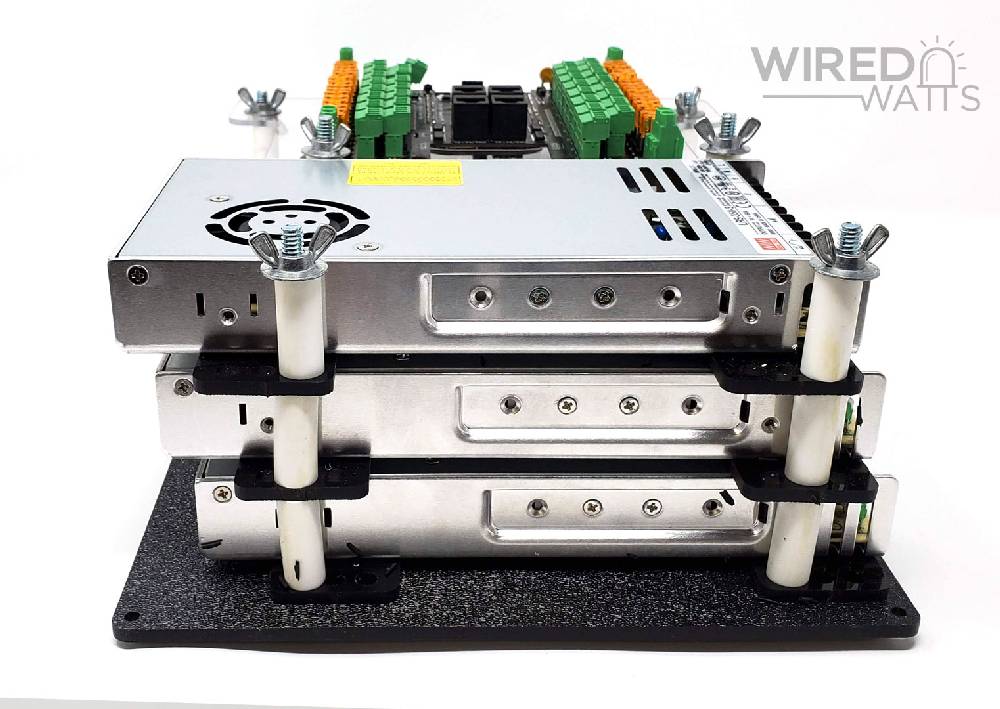

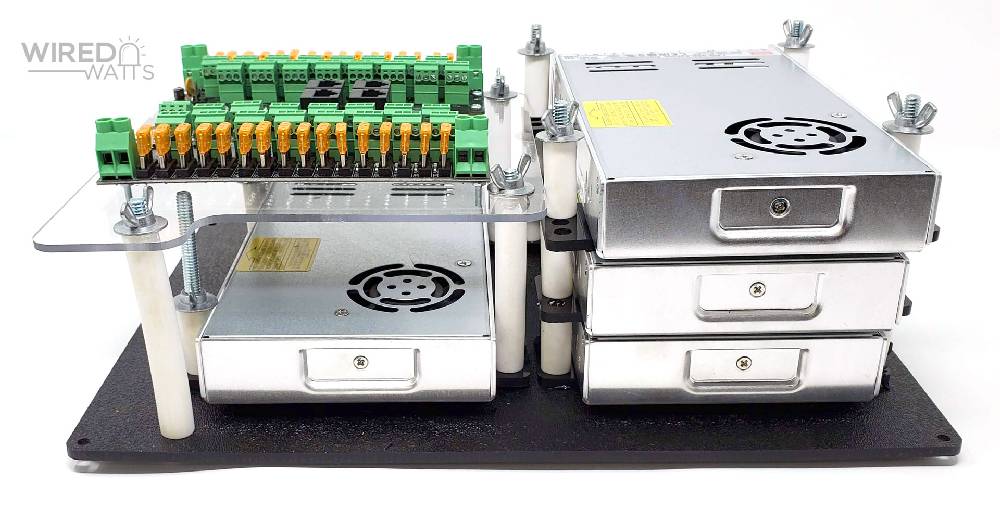

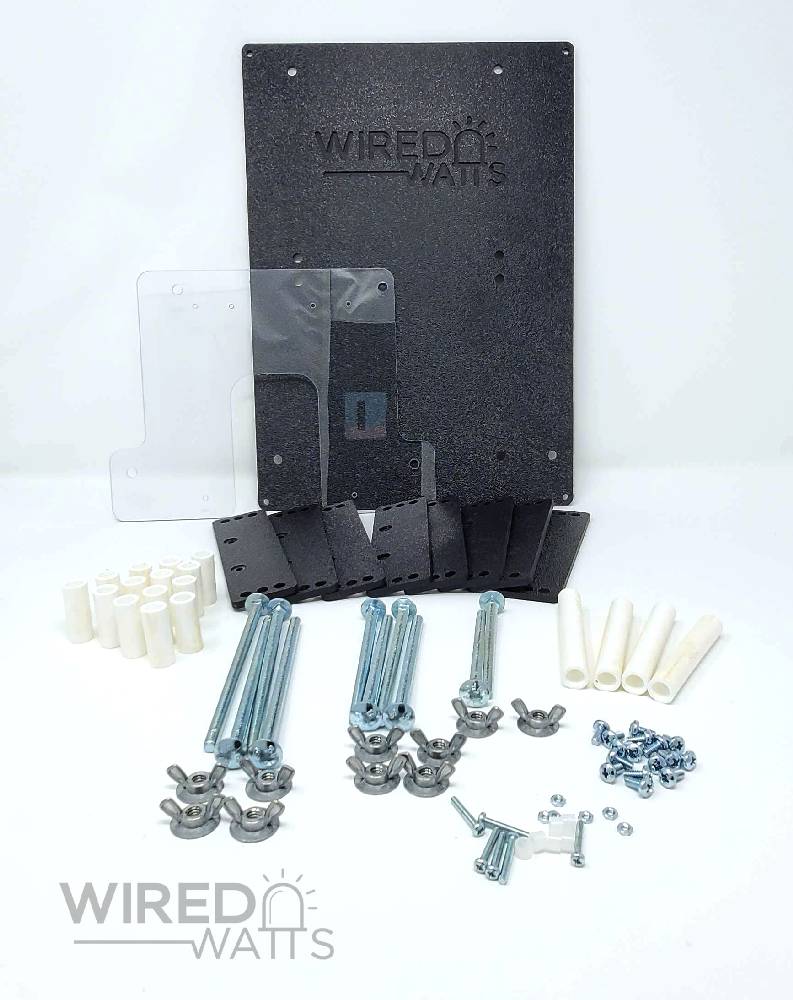

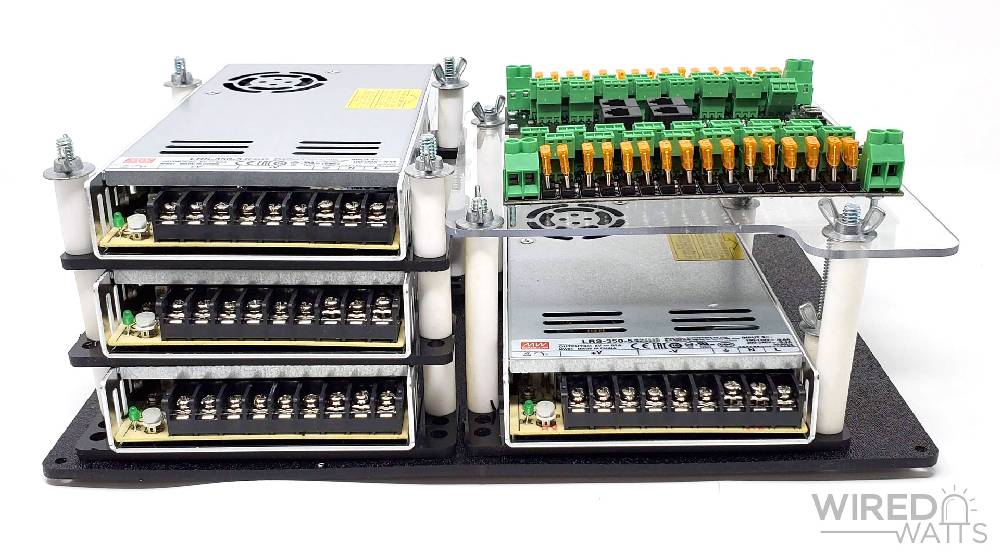

This mounting plate will allow you to put a Kulp Lights K32-B into a Bud NBF32026 box with 32 pigtails of your choice, 4 power supplies, and 5 network glands to allow for ultimate connectivity to your display. The mounting plate comes with all mounting hardware and the two plastic plates pictured. To create a full build, these are the necessary parts needed:

• 1 x Kulp Lights K32-B
• 1 x Beaglebone Black
• 0 to 1 x SD Card (the Beaglebone has an internal storage system. The SD card can be used permanently or temporarily to load the onboard storage)
• 1 x Bud NBF-32036 Enclosure
• 1 to 4 x Standard width Power supplies of your choice (If you want to max out the box with 4 power supplies, you would need slim Meanwell sized power supplies. The kit is designed with these in mind). The slim width power supplies are not compatible with the provided mounts.
• 1 to 2 x AC Power Cords (if you use 4 power supplies, you will want two power cords)
• 1 x PG9 Gland Pack
• 1 to 4 x PG7 Gland Pack (you will need a pack for every 8 pigtails. To max this out, you will need 32 pigtails)
• 0 to 2 x Small or Large Vent (we usually prefer the larger vent for this size box.)
• 0 to 5 x Network Gland with Dongle (it's a good idea to have at least one of these for the network port on the Beaglebone. The other 4 would be used for the DMX and receiver outputs on the K32-B)
• 10 feet of 10AWG Bulk Cable Red
• 10 feet of 10AWG Bulk Cable Black
• 1 to 32 x Pigtails of your choice (The K32-B can take up to 32 pigtails locally. Standard 18" will do just fine for this build.)
