CG1500 Mounting Plate for Kulp Controllers and Computers

Product Overview

This plate has layouts for most of the Kulp Lights Controllers and also some of the smaller computer boards.

For a Full Buildout

To make this plate a full buildout for a K16A-B, K8-B, K8-PB, or K32A-B, you will use the following:

• 1 × CG1500 Enclosure
• 1 to 2 × Slim Meanwell sized power supplies or a single Generic Power Supply
• 0 to 1 × Meanwell Double Stack Mount (used if you use more than one Meanwell)
• 1 × AC Power Cord
• Up to 5 feet of 10AWG Bulk Cable Red
• Up to 5 feet of 10AWG Bulk Cable Black
• 1 to 32 × Pigtails of your choice. 18" style pigtails will be fine for this build
• 1 to 2 × Heat Shrink Labels. Get a 1 - 16 and possibly a 17 - 32 set to label each of your pigtails. We carry 5 colors.

Product Specifications

• Width: 241.3mm / 9.5"
• Height: 241.3mm / 9.5"
• Thickness: 4.7625mm / 3/16"
• Material: ABS

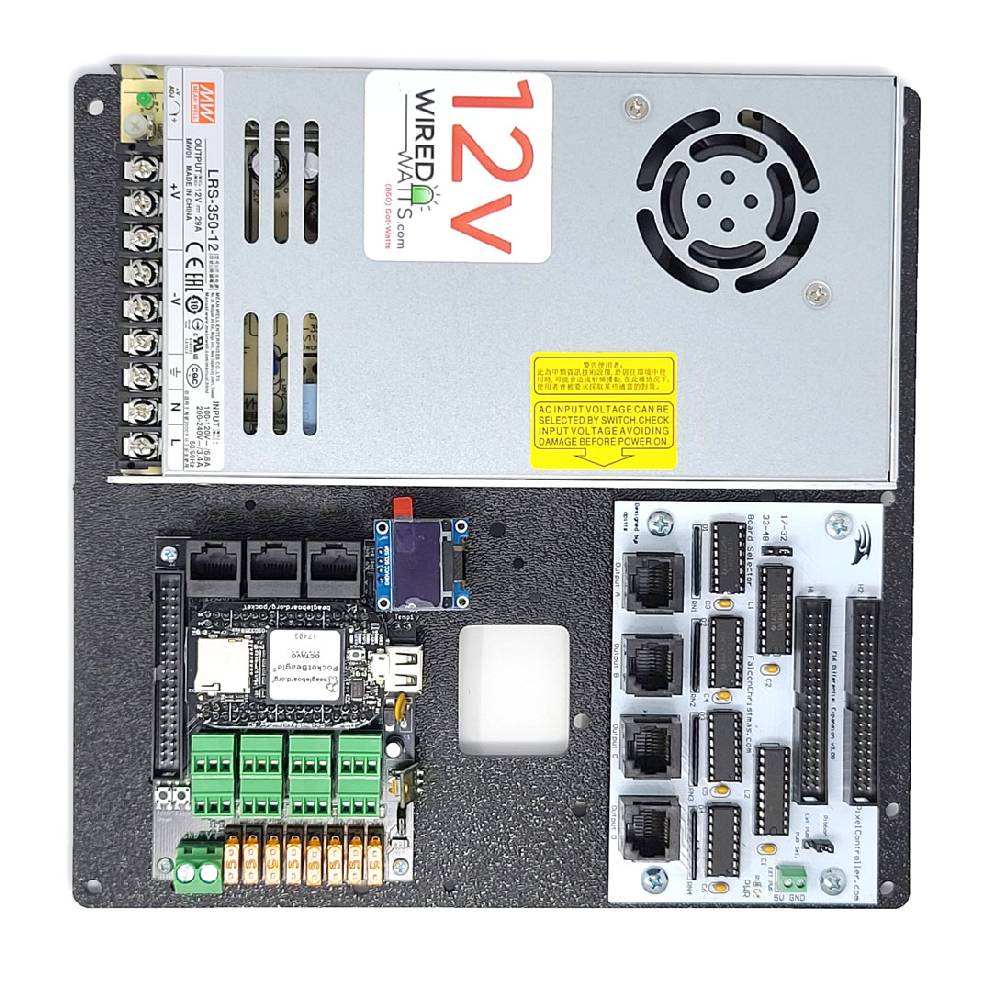

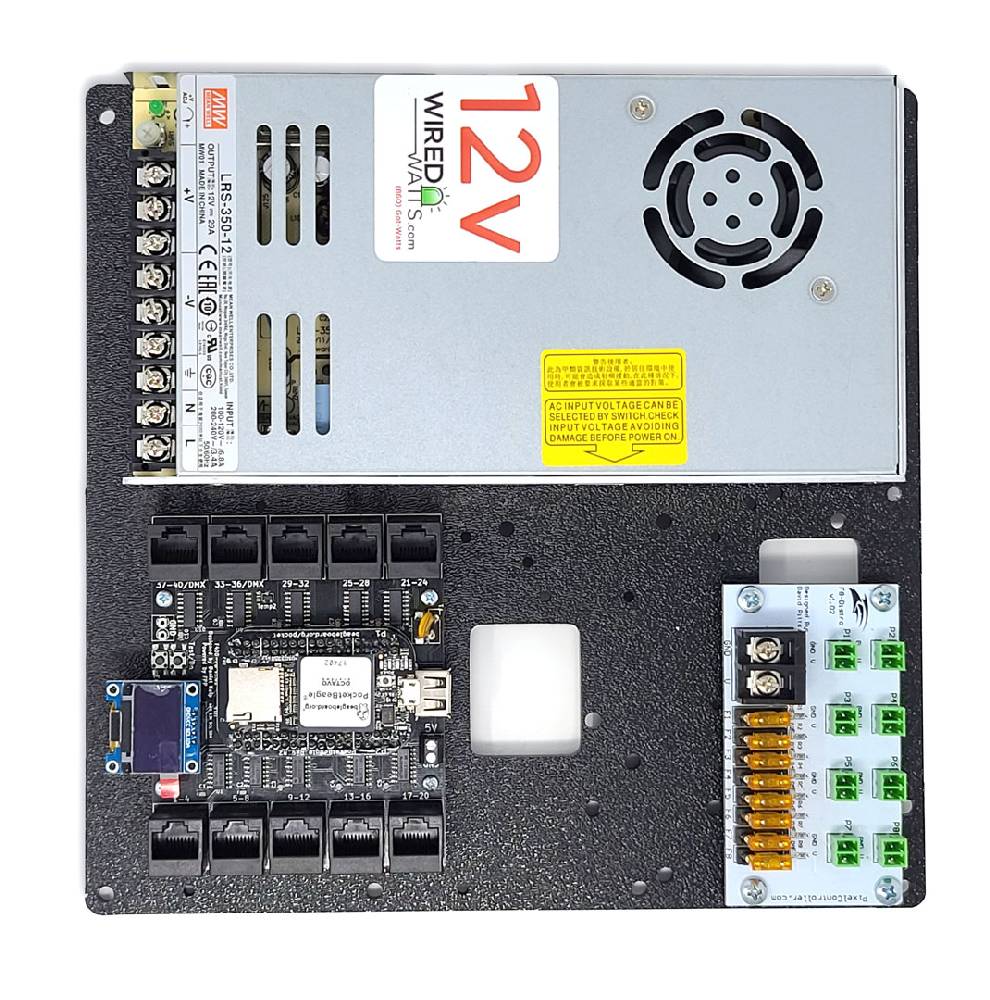

• Configuration: Layout for multiple configurations, refer to the pictures.
• Includes: CG Kulp and Computer Plate Screw Kit
• Works With:
  • Kulp Lights K32A-B, K16A-B, K8-B, K8-PB, K40D-PB
  • Raspberry Pi, Beaglebone Black
  • Falcon Dumb and Smart Receivers, Differential Expansion Board, String Expansion Board
