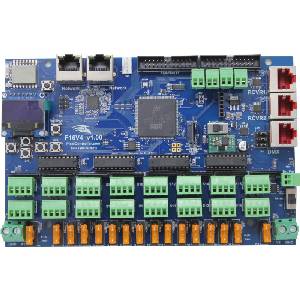

Falcon F16v4 Pixel Controller

Product Overview

The controller receives 192 universes of E131, Artnet or DDP data and can output pixel data to 16-48 strings with optional expansion boards.

Product Specifications

• Data In: 192 Universes of E1.31 / Artnet
• Network Connectivity:
  • 2-Port Switch to "Daisy-Chain" controllers
  • Wireless ESP-07 Module with board mount antenna.(Optional external antenna available)
• Pixel Outputs:
  • 16 pixel ports expandable up to 48 with up to two optional expansion boards.
  • All outputs can use any of the 98,304 channels this controller can receive as a start address
  • Each string can be independently configured for null nodes, zigzag, forward / reverse, node type, pixel count , grouping etc
• Integration: Controller can store sequences on micro SD card and play in sync with FPP master.
• Power:
  • Board can be powered from pixel power or external power. Both inputs can be 5 - 13VDC
  • Power output port to power switches
  • Two independent sides of power. Each one can be a different voltage
• Pixel per output: 1024 pixels per output in 16 to 32 string mode, 704 pixels per string in 48 port mode
• String Types: More than 70+ pixel types supported
• Sensors:
  • 1 × Processor temperature sensor
  • 2 × Additional temperature sensors
  • The incoming pixel voltages of main board are detected and displayed in user interface. (The webpage interface and OLED displays the voltages and temperatures.)
• DMX/Renard Outputs: 1 × Dedicated RS-485 output / RJ-45 connector
• Construction: Single 4-Layer Board
• UI:
  • 0.96" OLED 128×64 matrix display for setup and status.
  • 5 × Push buttons to control display. Up, Down, Right, Left and Select
  • Power LED indicator
  • Two multi purpose LEDS for status
  • 16 × fuse LED indicators
