NBF-32022 by Bud Industries Weatherproof Enclosure Precision Cut 24 Pigtail Holes 2 RJ45 Holes

Common Accessories

  • NBF-32022 by Bud Industries Weatherproof Enclosure Precision Cut 24 Pigtail Holes 2 RJ45 Holes
  • NBF-32022 Mounting Plate Kit for Falcon, Kulp, or Genius Controllers
  • Total Together: $84.00

NBF-32022 by Bud Industries Weatherproof Enclosure Precision Cut 24 Pigtail Holes 2 RJ45 Holes

$65.00

NBF-32022 by Bud Industries Weatherproof Enclosure Precision Cut 24 Pigtail Holes 2 RJ45 Holes

This option does not exist.

Availability:In Stock
Model: ennbf32022-24
MFG Part#: NBF-32022
Condition: New
Operating Weight: 3 lbs
Shipping Weight: 3.811 lbs
Shipping Dimensions: 14.5" × 12" × 7.5"


Share:

Product Overview

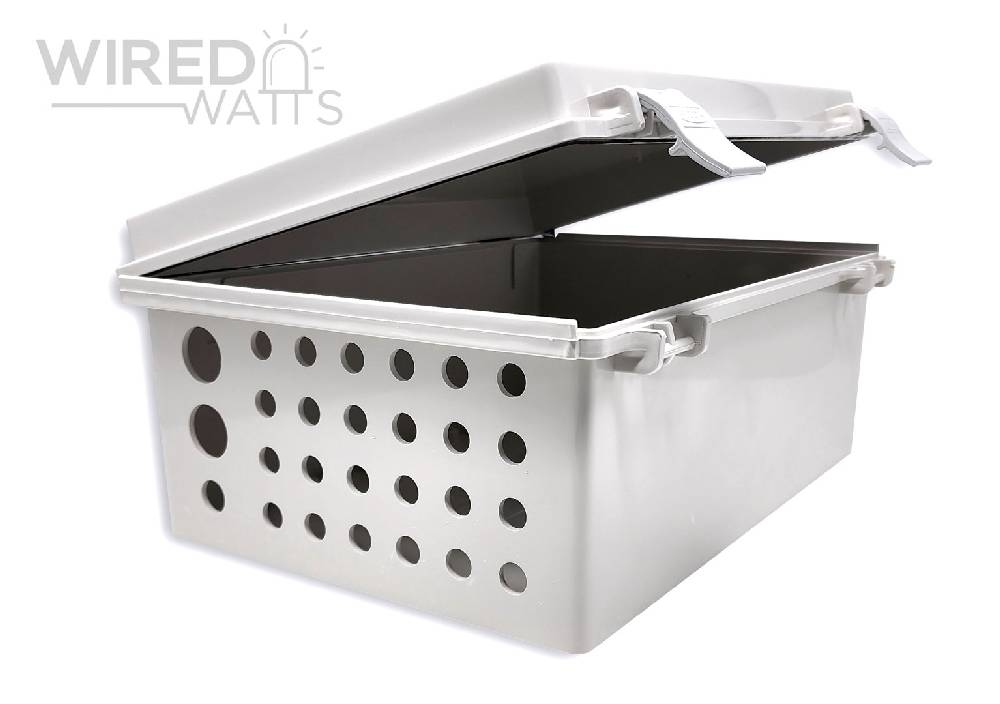

The NBF-32022 is a great option to mount controllers and other peripherals in a water resistant box. We carry a mounting plate that will work with the Kulp, Falcon, and EL style controllers while housing up to three power supplies. This precision, pre-cut version was designed to house a Kulp K8-B or K8-PB with a string expansion with 24 PG7 sized holes for pigtails of your choice, a single PG9 sized hole for power, and 2 holes for RJ45 passthrough glands to allow for network connectivity and receiver boards. If you wish to mount a Kulp K16 or Falcon F16 with 16 local outputs, take a look at this design.

Want some help building a full controller? Check out our Build-A-Kit page for controllers. It will assist you in finding all the items you need for a full controller buildout https://www.wiredwatts.com/build-a-controller-kit

Product Specifications

  • External Dimensions: 13.78" × 9.84" × 5.91"
  • Internal Dimensions: 12.82" × 8.88" × 5.32"
  • Weight: 3 lbs
  • Color: Light Gray
  • Indoor / Outdoor: Indoor (Not UV Stabilized)
  • Flammability Rating: UL94-HB
  • Type of Plastic: ABS
  • Service Temperature Min: -40°C
  • Service Temperature Max: 60°C
  • IP Rating: 66
